MOFA Studio won the international design competition for the NIWS project to deliver a globally competitive infrastructure within the realities of public procurement, creating a civic landmark that expresses Goa’s relationship with the sea.
Set along Goa’s coastline, the National Institute of Water Sports (NIWS) was commissioned to formalise training, research, and safety standards for an expanding marine tourism and adventure-sports economy.
Its architecture draws from trochoidal wave patterns, the rolling geometry of water in motion, translated into built form rising, folding, surging forward. The ground plane is resolved in local granite and laterite stone, chosen for durability and resistance to high footfall, salt air, and maintenance demands.

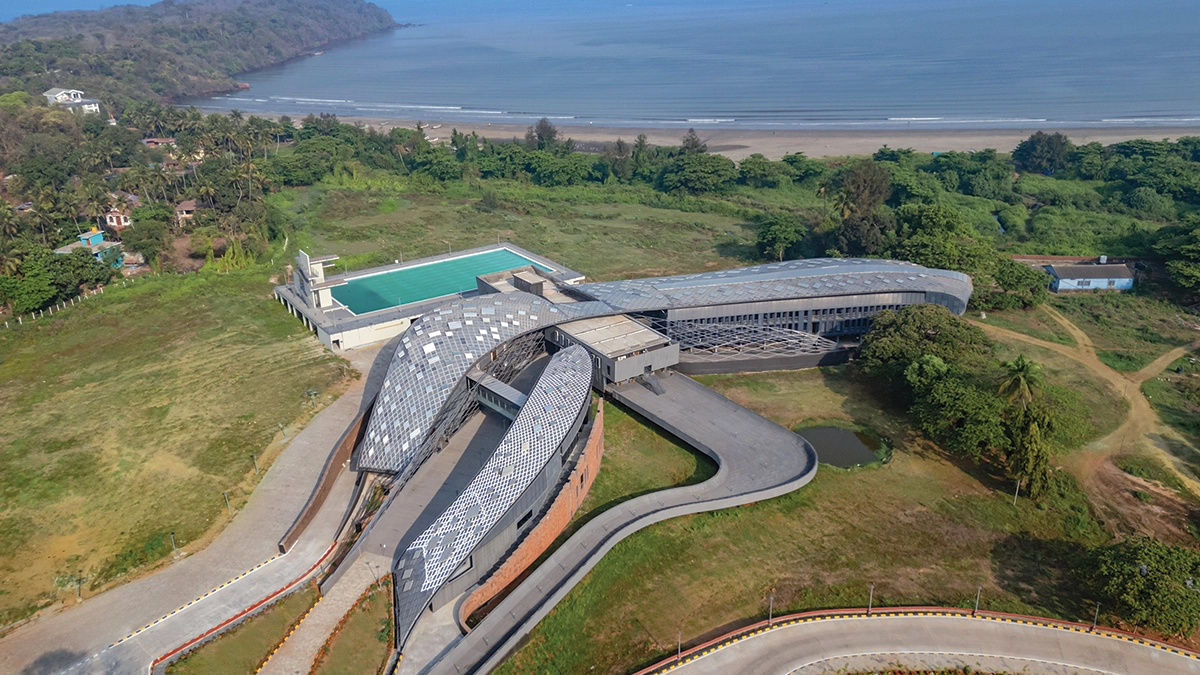

Above, a single roof gathers the entire campus beneath its span, providing shade, weather protection, and a coherent civic identity. The roof is also the defining element of the project and one of India’s most complex digitally fabricated structures, executed on a tight government budget through modular, lightweight components that could be assembled manually.
Goa’s cultural and economic identity is deeply tied to the sea, and our design responds to this context through a powerful architectural metaphor where functional infrastructure meets iconic expression.
Manish Gulati, Founder and Principal Architect
A digitally fabricated mega-structure covering approximately 4,000 sq.m is resolved as a lightweight grid-shell through trapezoidal panelling and a pressure-equalisation strategy. Over 15,000 pipes of varying lengths are rationalised into modular segments, each sized for manual lifting and placement—a direct response to lowest-bid contracting and on-site labour realities.
More than 5,000 customised roof panels, each unique in shape and size, were CNC-cut and folded off-site, then assembled like a jigsaw across the parametric surface. Continuous gutters are embedded within the geometry to channel monsoon runoff without interrupting the silhouette, turning the roof into both a spatial signature and an environmental instrument.
Fact File
Location: Panjim, Goa
Client: Ministry of Tourism
Site Area: 65509 sq.m
Built-Up Area: 12075 sqm / 130,000 sq ft
Status: Competition held in 2012
Completion Date: 2024
Photographer: Vinay Panjwani
Coastal resilience and lifecycle performance were treated as baseline criteria. Sandblasted corrosion-resistant steel, finished with three layers of polyurethane, directly addresses the demands of saline exposure. Passive comfort is strengthened through deep shading, protected outdoor circulation, and cross-ventilation driven by sea winds, achieved through the deliberate orientation of buildings to the coast. Water management is equally considered with roof drainage feeding directly into a pond beneath the entrance bridge, collecting rainwater for landscape irrigation through the peak summer months.
The campus planning balances clarity and fluidity: academic, administrative, residential and recreational zones retain their functional identities, but are connected through open, in-between spaces that encourage informal interaction. This spatial porosity reflects the essence of water sports.
Grounded in local materials yet global in expression, NIWS embodies a new direction for institutional architecture in India—contextual, technologically advanced, and culturally rooted.
