Steel Structure Adding Stature to Building and Construction Industry

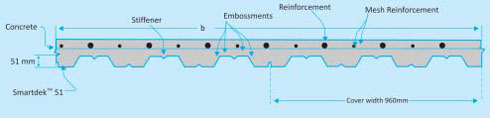

Smartdek 51 Panel	Smartdek 51 Panel – Cross section

Tata BlueScope Steel Limited is an equal joint venture between Tata Steel Limited and BlueScope Steel Limited. The company has three manufacturing facilities consistently delivering world - class services and products. The Building Products manufacturing facilities are based in Pune, Chennai and Bhiwadi.

Tata BlueScope Steel Limited offers a comprehensive range of LYSAGHT® roll - formed steel products for building and construction applications. The brand is over 100 years old and has been extensively used throughout the world for roofing and wall - cladding applications. Our expertise is to develop entire system including the external cladding to suit the project requirement. LYSAGHT® research and development team continuously works towards developing new systems to make sure that our products give the best performance over the time in comparison to any conventional system.

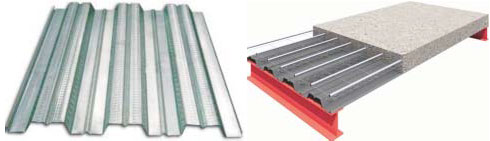

LYSAGHT SMARTDEK™ 51 Structural Decking System:

LYSAGHT SMARTDEK™ 51 Structural Decking System is an innovative high strength zinc - coated steel decking system designed for use in the construction of composite floor slabs. It is specifically developed for the Indian construction industry and is one of the most economical structural steel decking in the country.

SMARTDEK™ 51 is suitable for typical applications as it provides widest cover per weight of steel and also minimizes the requirement for reinforcement.

SMARTDEK™ 51 panels are manufactured from high strength galvanised steel with Z275 (min 275g / m2zinc coating) as per AS 1397 or equivalent standard. It has a rib depth of Nominal 51 mm and provides an effective cover width of nominal 960mm. The embossments (shear grove) on the side of ribs and top of the flange provide excellent mechanical interlocking between steel and concrete (i.e. composite action). In the assembled state, the profile compromises of intermediate male and female ribs for every interlocking side - lap joint. The available thickness ranges from 0.70 mm to 1.2 mm BMT (Base Metal Thickness). The steel conforms to AS1397 and BS EN 10147:2000.

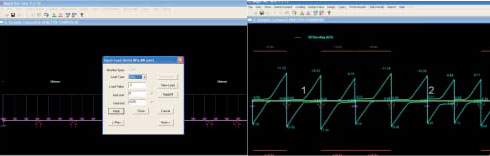

Software: Excel based SMARTDEK™ 51 software and MEGAFLOOR® structural decking software for the design of composite slabs with SMARTDEK™ 51 profile are available to assist engineers and consultants in deriving an optimal solution. These powerful tools facilitate quick and optimized composite slab designs up to 4 hours of fire rating.

SMARTDEK™ 51 systems provide a safe working platform and acts as an integral structural element to the composite slab. Its unique profile features combined with high strength steel of minimum 550MP a yield strength provides large un - propped spans.

Benefits of LYSAGHT SMARTDEK™51 structural decking system

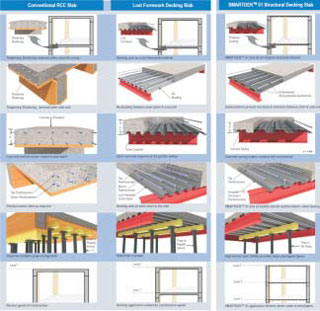

SMARTDEK™ 51 acts as positive tensile reinforcement to the slab and saves substantial amount of reinforcement steel by weight which is used in conventional RCC slab construction and lost formwork deck slab. It is easy to set up and minimizes multi-storey construction time. Faster construction time allows optimization on construction schedule delivering faster value to the developers.

End Application: SMARTDEK™ 51 systems are extensively used for mezzanine applications in industrial buildings. Faster speed of construction makes it most economical solution for composite slab construction in multi - storey buildings and commercial establishments.

Potential benefits of steel concrete composite construction have made it increasingly popular and this technique is particularly adopted in the composite deck slab of bridges and flyovers.
